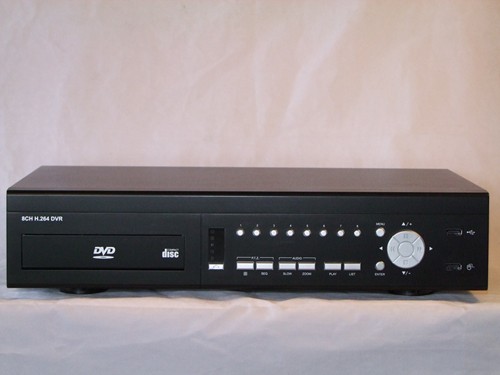

New CPCAM CPD556D / AVTECH AVC796AD / MDR686A With 1000GB (1TB) Hard drive and DVD-R: This 8 Channels Real Time DVR True Hardware H.264, 240FPS Real time Multiplex Network Ready DVR with built 22X DVR-R burner series combines Remote Surveillance, Burglar Prevention, and Evidentiary recording features. It is designed to become a simple DVR system with all necessary functions such as network ready for remote viewing and back up, built in H.264 web server for real time 30FPS remote monitoring with out the lag and the delay of JPEG video server for superior Video and Audio over the internet remote viewing and operation . Also, it will allow you to view your DVR with using any Web Browser. It supports QuickTime for Mac or Active-X for PC or with provided advance remote monitoring software C.M.S. that enable you to watch and control multiple units (up to 16 all at the same time).  support I-phone and Windows based smart Phones. This DVR is SATA Hard Drive ready no need to format or load any special software plug and play any SATA Hard Drive up to Two 3TB for up to 6TB total storage . Through the built in Four Audio channels you can record and play back Audio with Video even over the internet. For easy operation, a Remote control is included. Back up options available through a USB Port or a built-in DVD-R or remotely over the internet dual operation allow for remote viewing with our effecting main unit.

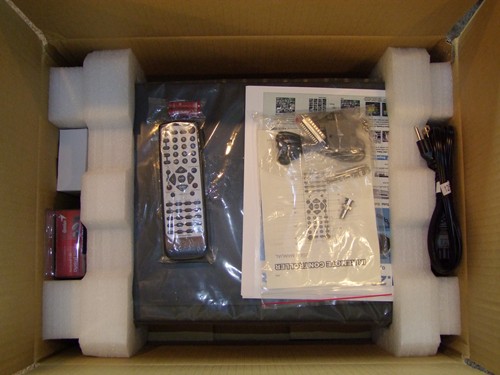

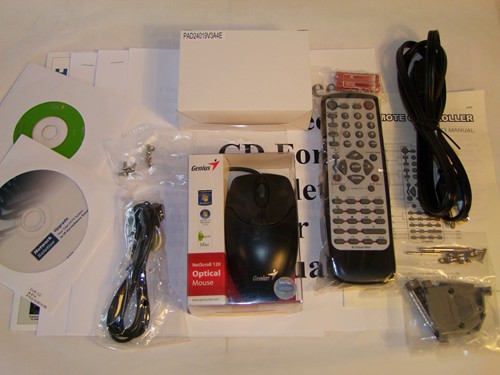

Box contains: Unit, with built in VGA out and 22X DVD-R, 19V Power Supply, Power Cable, Remote, Mouse, User Manual/Software CD, I/O plug, and RCA to BNC Adapter for use with TV input. with 1000GB (1TB) Hard Drive is installed.

Hover Your mouse over the small images to enlarge

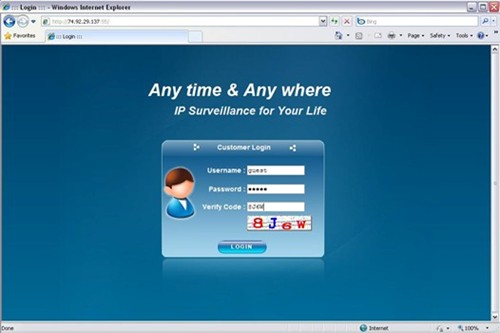

Click for Live Demo Of AVC798AD User Name: guest  : Password :guest

	Supper Fast H.264 Network Transmission.
	* H.264 web transmitting compression format for faster transmission and clearer images via network.
	VGA Output Support.
	* Built-in VGA interface to directly connect to a LCD monitor.
	* Output resolution up to 1600 x 1200.
	Remote Independent Operation.
	* Allows single-channel viewing of live displays or play pack without changing display settings on the licensed software provided.
	Multiplex Operation.
	* Allows live display, record, playback, backup and network operation at the same time.
	Free Upgrade to Advanced Functions;
	Allows you to upgrade DVR functions without any charges .
	Backup Device.
	* Supports USB flash drive, DVD writer & Network backup.
	Remote Surveillance.

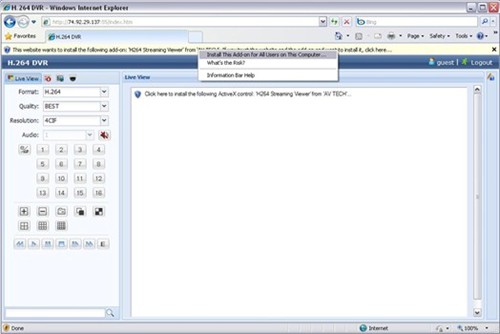

	* Supports remote surveillance up to 10 users simultaneously with the licensed software "Video Viewer" / Internet Explorer or Mozilla Firefox web browser / QuickTime player.
	Intelligent Motion Trigger Recording.
	R.E.T.R. (Remote Event Trigger Recording).
	* Customizable security settings are achieved with the advanced motion detection, the scheduled motion detection recording (with four individually adjustable parameters), and the quick search function.
	* Customizable security settings are achieved with the advanced motion detection, the scheduled motion detection recording (with 4 individually adjustable parameters), and the quick search function
	* Supports pre-alarm recording (8MB)
	Huge Storage.
	* Supports up to Two SATA HDDs with each HDD storage over 3000GB.
	Covert Recording.
	* Blank screen replaces live displays to achieve covert recording
	Audio Support.
	* Supports 4 audio-in, 2 audio-out to record sounds with Audio live over the network and I phone .
	General.
	* Supports SATA HDDs.
	* Supports multi-language OSD.
	* Supports IR remote control with built in IR sensor and IR plug & PTZ camera control.
	* Ensures the authentication of recorded images with the watermark function.
	* Supports daylight-saving function, Supports auto video system detection (NTSC / PAL).
	* Supports manual / timer / motion / alarm / remote recording functions.
	* System auto recovery after power failure.
	* Supports TCP/IP, PPPoE, DHCP and Full DDNS network connection.



Video System	NTSC / PAL (auto detection)
Video Compression Format	H.264

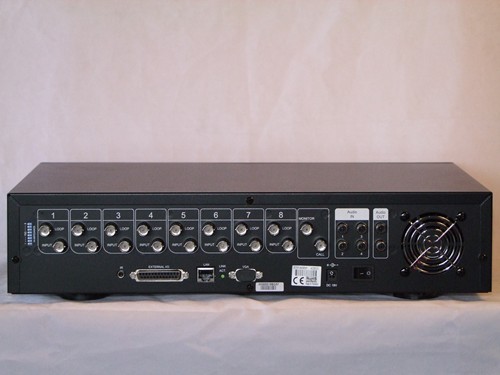

Video Input	8 Channels. Composite video signal 1 Vp-p 75Ω BNC
Video Loop Out	8 Channels. Composite video signal 1 Vp-p 75Ω BNC
Video Output	Main Monitor BNC Output: Composite video signal 1 Vp-p 75Ω BNC Call Monitor BNC Output: Composite video signal 1 Vp-p 75Ω BNC Main Monitor VGA Output: for LCD or Computer Monitor up to 1600/1200
Maximum Recording Rate (Frame)	60 IPS @ 720×480 pixels / 50 IPS @ 720×576 pixels
Maximum Recording Rate (Field)	120 IPS @ 720×240 pixels / 100 IPS @ 720×288 pixels
Maximum Recording Rate (CIF)	240 IPS @ 352×240 pixels / 200 IPS @ 352×288 pixels
Adjustable Recording Speed	Frame: 60,30, 15, 7, 3 IPS <NTSC> / 50,25, 12, 6, 3 IPS <PAL> Field:  120,60, 30, 15, 7 IPS <NTSC> / 100,50, 25, 12,6 IPS <PAL> CIF:  240,120, 60, 30, 15 IPS <NTSC> / 200,100, 50, 25, 12 IPS <PAL>
Multilingual OSD	Yes  with Mouse GUI
Image Quality Setting	Supper Best, Best, Normal and Basic

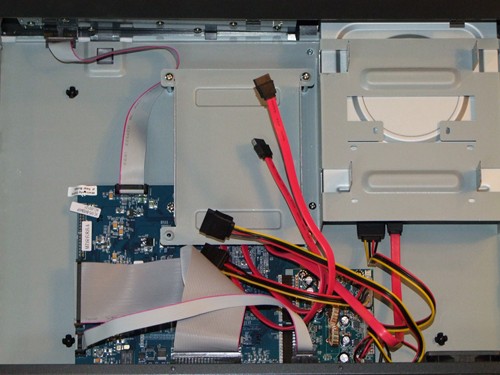

Hard Disk Storage	Accommodate Up to 2 SATA Hard Drive.
HDD Quick Cleaning	Quick clean up the "index system" of the recorded files. 3 TB  under 2 seconds

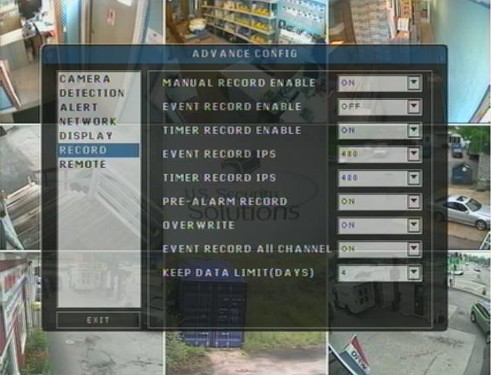

Recording Mode	Manual / Timer / Motion / Alarm / Remote
Refresh Rate ( Live View)	240 IPS for NTSC / 200 IPS for PAL
Audio I/O	4 audio input, 2 audio output (Mono) with Audio over internet
VGA Support	Yes
Motion Detection Area	16 × 12 grids per camera for all channels
Motion Detect Sensitivity	4 adjustable variables with precise calculation for motion detection
Pre-alarm Recording	Yes (8MB)

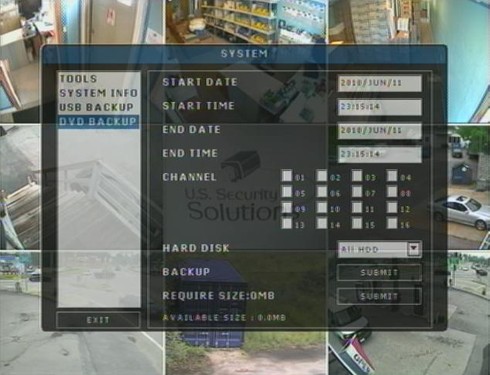

Backup Device	1. 2.0 USB  flash drive, 2. DVD writer, 3. Network
Web Transmitting / Compression Format	H.264
Ethernet	10/100 Base-T. Support remote control and live view via Ethernet.

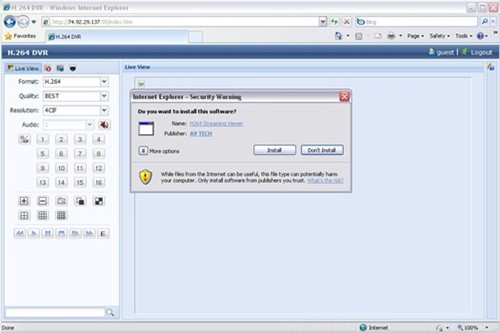

Web Interface	Support licensed software Video Viewer (C.M.S) , Internet Explorer  browser, Mozilla Firefox browser and Quick time player. Operating System : Windows 7/ Vista/XP/2000, Apples Mac
Remote Alarm Notification	By E-mail & FTP
Network Connection	Support TCP/IP, PPPoE, DHCP and DDNS function
IR Transmitter Control	Yes
USB Interface	Front panel * 1
PTZ control	Yes, Support PELCO-D / PELCO-P / AVTECH / CPCAM protocol
Multiplex Operation	live display, record, playback, backup and network all at the same time
Dwell Time (Sequential Channel Switch)	Programmable with adjustable dwell time (3,5,10,15 Sec.)
Alarm I/O	8 inputs, 1 output
Digital Zoom	2X digital zoom
Key Lock	Yes
Video Loss Detection	Yes
Camera Title	Support up to 6 letters
Video Adjustable	Hue / Color / Contrast / Brightness

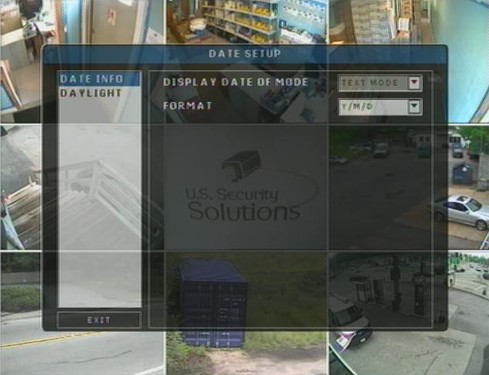

Date Display Format	YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
Power Source	DC 19V
Power Consumption	＜64 W
Operating Temperature	10c ~ 40c (50f~104f)
Dimensions (mm)	432(W) x 90(H) x 326(D)
System Recovery	System auto recovery after power failure
Optional Peripherals	Keyboard Controller



Unit comes with Full U.S. One Years Warranty on DVR and 3 Years on the Hard Drive if Installed .

Hard drive warranty through the the hard drive manufacturer.

Standard video output (A/V) with included adapter BNC to RCA you could connect your DVR to any TV with an RCA video input no need for expensive monitors or screens.

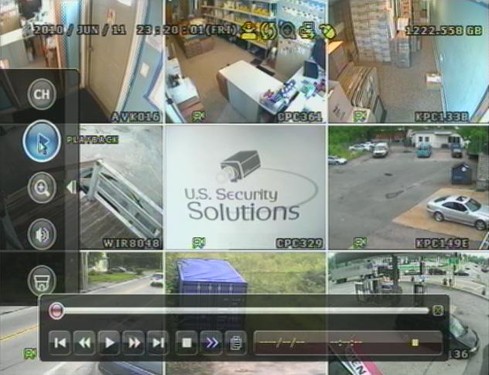

AVTECH H.264 DVR User-friendly Interface by mouse control

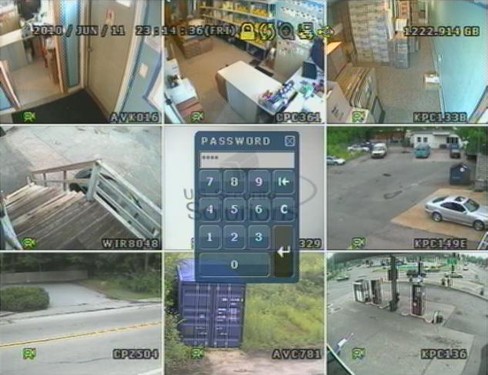

Easy USB mouse control with GUI on-screen display (OSD) On the basis of easy and userfriendly experiences, the GUI OSD interface is provided and used with your USB mouse.

OTHER H.264 DVR Not so user-friendly caused by hardware limit



Free CMS Software Our self-developed powerful Central Management System software, CMS, is provided without any charge for simultaneous control & management of 16 network devices.

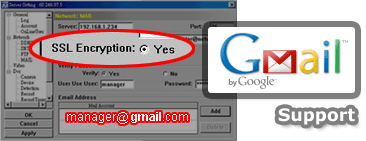

G-Mail Server Notification Support Email notification settings support SSL encryption required by popular Email service providers, such as Google, to transmit data and information back and forth securely between two applications.



The Best Video Playback Quality The recording picture quality is very similar to live image.
	AVTECH H.264 DVR	OTHER H.264 DVR



Fluent Real-Time Video Playback The video playback is fluent without any picture loss.



Powerful mobile surveillance support: Mobile surveillance via our self-developed and free program, "EagleEye", is supported on many popular mobile platforms, such as iPhone, BlackBerry, WinCE and 3GPP.

iPhone BlackBerry J2ME WinCE



Independent event-triggered recording With AVTECH's accurate event-triggered recording for single channel, users will not miss any important event and can have the maximized recording time. As for the other brand's DVR, its event-triggered recording accuracy is not satisfactory or even not supported, consuming a significant amount of hard disk space for event recording.



Long Recording Time Compared with other brand's H.264 DVR, based on the same image quality level, the recording file size is 50% smaller, and the recording time is doubled.
	AVTECH H.264 DVR	OTHER H.264 DVR
