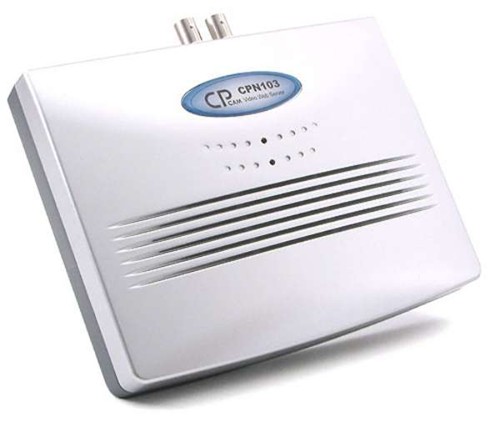

New CPCAM CPN103 / AVC732E Video Server : CPN103 / AVC732E is 2 CH Video Web Server that can connects Internet via IP address. It could enable our DVR series product or any camera to connect to Internet for remote monitoring or remote control. Besides, it could also enable 2 video input to connect to Internet for remote monitoring and recording. It is an intelligent and user-friendly digital security product. .

Hover Your mouse over the small images to enlarge

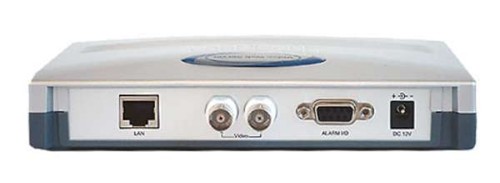

JAVA language --- Browser Control on different OS (Windows) Support JPEG compression format. Support video recording. Support video access by APs (software) or HTML pages (IE explorer) Whenever alarm system triggered, video streaming or pictures will be uploaded over FTP, email as an instant notification.. Support 3G & GPRS system for remote surveillance with mobile phone using Egaleye. Support static IP, PPPOE, TCP/IP and DHCP for network connection. Support DDNS function as a router. Support Reai-time performance, 30(NTSC) / 25(PAL) images/sec. Full alarm-triggered event list for easy search and quick playback. Support multiple user access levels with security protection. Support watch dog function for automatic network reconnection. Auto Network Reconnection will reactivate recording function automatically when network is reconnected. Video Input 2 Channel for analog & digital products, 1.0 Vp-p, 75, Composite, BNC. Alarm Input 4 Inputs / 2 Outputs. Watch dog Yes* RS-485 Port Yes Network Interface Ethernet (10/100 Base-T) Image Compression JPEG Video Adjustment Brightness, Contrast, Hue Protocols TCP/IP, ICMP, SMTP, FTP, HTTP Network Upgrade Yes Support 3G & GPRS Yes Alarm Trigger Recording Yes Resolution 704x480, 320x240(NTSC) ; 704x576, 352x288(PAL) Performance Video through put : Up to 30(NTSC), 25(PAL) images/ second Trigger & Action Triggered by GPIO Input, Action: E-mail video/images or video/images upload to FTP site's specific accounts Multiple Users Up to 5 Users Develop environment JAVA Auto Network Connection Yes Security Password Protection Power Source DC12V Current consumption 500 mAmp Remote Source Yes *Watch Dog Function can keep Video Web Server to work normally and to avoid this apparatus to be down. We offer UPS shipping ground, three days select and Over night No P.O. Box Please
