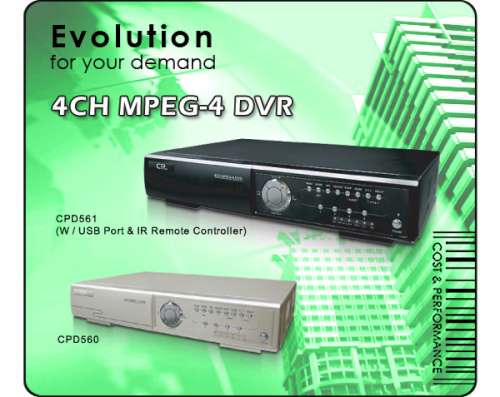

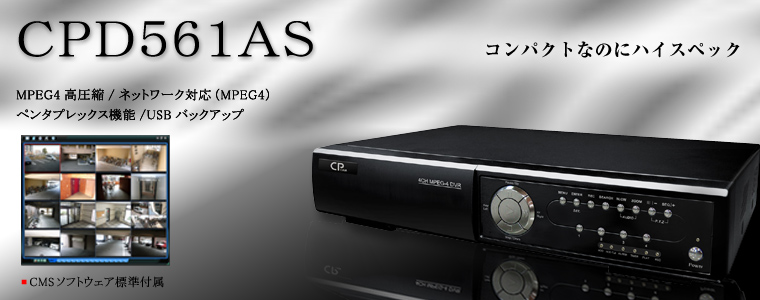

New CPCAM CPD561ASV: This 4 CH MPEG4 Multiplex Network DVR series combines Remote Surveillance, Burglar Prevention, and Evidentiary Recording features. It is designed to become a simple DVR system with all necessary functions such as network ready for remote viewing and back up, built in MPEG-4 web server for real time remote monitoring with out the lag and the delay of JPEG video server. Also, it will allow you to view your DVR with using any Web Browser. It supports QuickTime for Mac or Active-X for PC or with provided advance remote monitoring software C.M.S. that enable you to watch and control multiple units (up to 16 all at the same time). This DVR is SATA Hard Drive ready; no need to format or lode any special software plug and play any SATA Hard Drive up to 1.5TB. Through its built in One Audio channel you can record and play back audio with video. For easy operation, a Remote control is included. Back up options available through a USB Port.

Box contain Unit, 19V Power Supply, Power Cable, Remote, Remote wire, User Manual/Software CD, I/O Plug and RCA to BNC Adapter for use with TV input. 320GB  Hard Drive is installed.

Hover Your mouse over the small images to enlarge

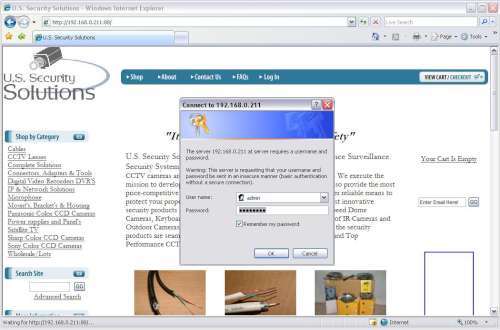

Click for Live Demo User Name: guest  : Password :guest

	MPEG4 Technology
	Local MPEG4 compression format providing crystal clear images with real time performance
	Remote MPEG4 web transmitting for faster transmission and clearer images via network
	Multiplex
	Allows live display, record, playback, backup and network operation at the same time.
	Backup Function:
	Supports network remote recording & backup
	Remote Surveillance:

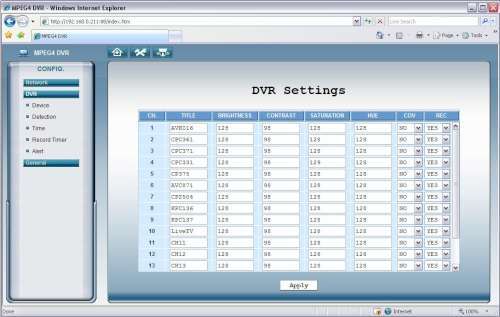

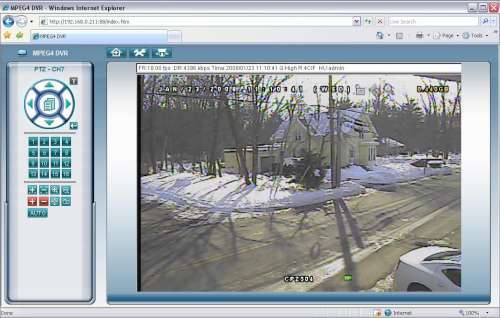

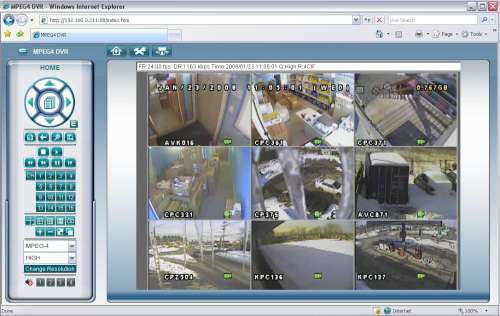

	Remote surveillance with the licensed software AP, IE browser and Mozilla Firefox browser
	Web surveillance with 20 users simultaneously
	Intelligent Motion Trigger Recording:

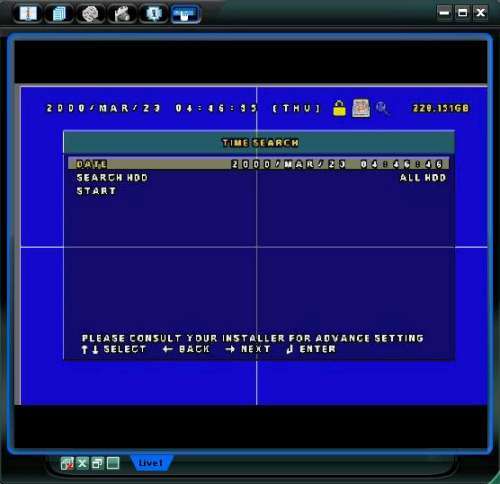

	With advanced settings for motion detection, scheduled motion detection recording (4 different adjustable factors for the motion detection sensitivity) and convenient search function, customized security environment is achieved.
	Alarm triggered recording will send alerts with images to the designated e-mails and FTP address
	Supports pre-alarm recording (8MB)
	Covert Recording:
	Blank screen replaces live displays to achieve covert recording
	A/V Support:
	Supports 1 audio-in, 1 audio-out to record sounds
	Supports VGA output (VGA interface built-in)
	General:
	Supports SATA HDD

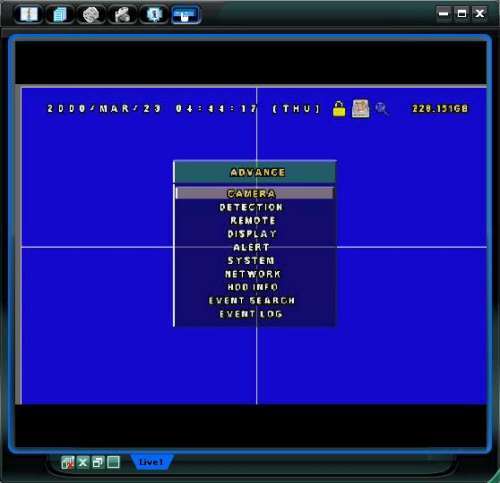

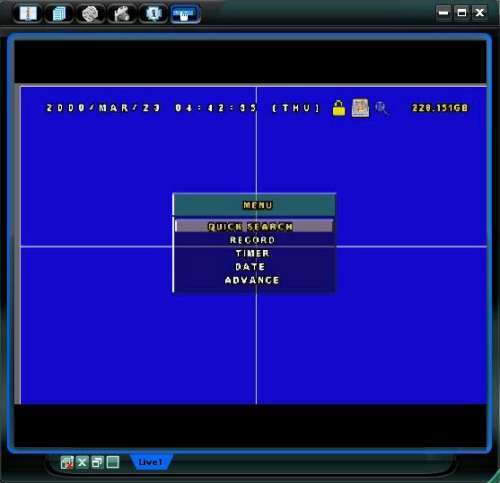

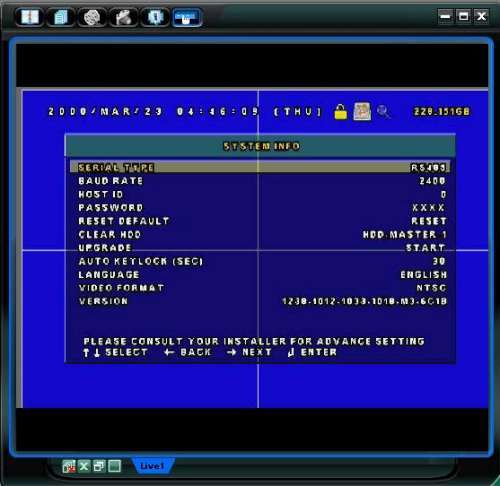

	Supports multi-language OSD
	System auto recovery after power failure
	Supports daylight-saving function
	Supports manual / timer / motion / alarm / remote recording functions
	Ensures the authentication of recorded images with the watermark function

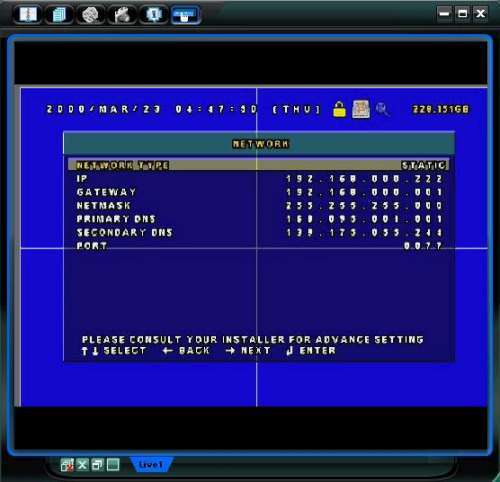

	Supports TCP/IP, PPPoE, DHCP and DDNS network connection

Video System	NTSC / PAL (auto detection)
Video Compression Format	MPEG4
Video Input	4 Channels. Composite video signal 1 Vp-p 75Ω BNC
Video Loop Out	4 Channels. Composite video signal 1 Vp-p 75Ω BNC
Video Output	Main Monitor Output: Composite video signal 1 Vp-p 75Ω BNC
	Call Monitor Output: Composite video signal 1 Vp-p 75Ω BNC
Maximum Recording Rate	Frame: 720×480 pixels with 30 IPS <NTSC> / 720×576 pixels with 25 IPS <PAL>
	CIF: 352×240 pixels with 120 IPS <NTSC> / 352×288 pixels with 100 IPS <PAL>
Adjustable Recording Speed	Frame: 30, 15, 7, 3 IPS <NTSC> / 25, 12, 6, 3 IPS <PAL>
	CIF: 120, 60, 30, 15 IPS <NTSC> / 100, 50, 25, 12 IPS <PAL>
Image Quality Setting	Best, High, Normal and Basic
Hard Disk Storage	Support SATA HDD＊1, support HDD capacity over 1000GB
HDD Quick Cleaning	Quick clean up the "index system" of the recorded files. 1000GB under 2 seconds
Recording Mode	Manual / Timer / Motion / Alarm / Remote
Refresh Rate	120 IPS for NTSC / 100 IPS for PAL
Audio I/O	1 audio input, 1 audio output (Mono)
VGA Support	Built-in

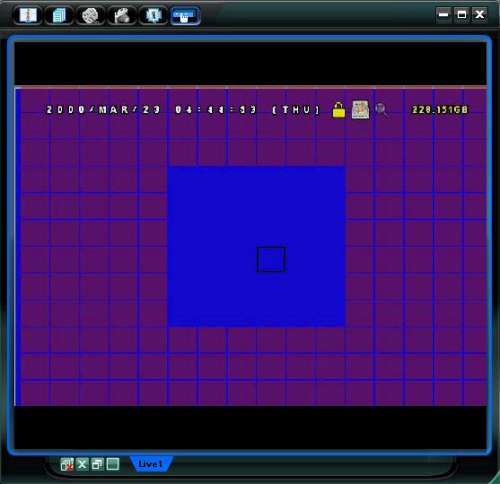

Motion Detection Area	16 × 12 grids per camera for all channels
Motion Detect Sensitivity	4 adjustable variables with precise calculation for motion detection
Pre-alarm Recording	Yes (8MB)
Backup Device	Network / USB Flash Drive
Web Transmitting / Compression Format	MPEG4
Ethernet	10/100 Base-T. Support remote control and live view via Ethernet.
Web Interface	Support licensed software AP, IE browser and Mozilla Firefox browser
Remote Alarm Notification	E-mail images, and upload images to FTP site's specific account

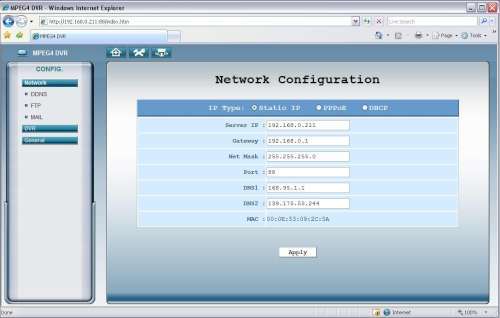

Network Connection	Support TCP/IP, PPPoE, DHCP and DDNS function
PTZ control	Support PELCO-D protocol
IR Transmitter	YES
Dwell Time (Sequential Channel Switch)	Programmable with adjustable dwell time
Alarm I/O	4 inputs, 1 output
Digital Zoom	2X digital zoom (live mode)
Key Lock	Yes
Video Loss Detection	Yes
Camera Title	Support up to 6 letters
Video Adjustable	Hue / Color / Contrast / Brightness
Date Display Format	YY/MM/DD, DD/MM/YY, MM/DD/YY, and Off
Power Source	DC 19V
Power Consumption	＜42 W
Operating Temperature	10℃ ~ 40℃ (50℉~104℉)
Dimensions (mm)	345(W) x 68.3(H) x 225(D)
System Recovery	System auto recovery after power failure
Optional Peripherals	Keyboard Controller



Unit comes with Full U.S. One Years Warranty on DVR and 3 Years on the Hard Drive if Installed .

Hard drive warranty through the the hard drive manufacturer.

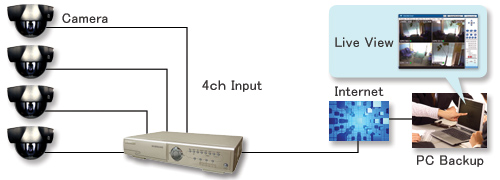

This intelligent Pentaplexes DVR flawlessly combines: Remote Surveillance: CPD561ASV powerful network functions allow users to control the system even when afar from the camera environment. When connected to the Internet, you can access your system anytime and any where, to view pre-recorded images, activate motion detection, or even control your Pan Tilt Zoom Camera. When you are not near a computer, your mobile phone can become your security center. With 3G & GPRS and special application software, you are able to have the full functionality of the DVR on your mobile phone. When motion is triggered, it will send alert message to your mobile phone with a snapshot to warn you; you can immediately access your mobile phone and know what is happening in your environment and respond right away. 3G & GPRS Remote Surveillance on cellphone Burglarproof System: CPD561ASV unique which intelligent motion detection system offers a 12x16 grids for each channel that will capture everything that you want to record. 4 independent sensitivity parameters will help you create a motion environment that matches your requirement. When Remote Event Trigger Recording (R.E.T.R.) is activated and when a motion is triggered, your remote computer will automatically back up files inside the remote computer's HDD. This way you will never have to worry about the DVR being stolen or damaged from the camera environment, because you will always have a back up file stored at a remote side. R.E.T.R(Remote Event Trigger Recording) — actual case Evidentiary Recording: CPD561ASV is a super Pentaplexes DVR meaning you can operate multi tasks simultaneously, while the DVR is recording. You never have to worry about losing any moments while you are recording. The real time 120IPS (NTSC) / 100IPS (PAL) recording rates ensure all movements are recorded smoothly and no skipping frames. 720 x 480 pixels pictures also guarantee the image quality is crystal clear and all objects can be identified easily.   P.T.Z.( Pan/Tilt/Zoom ) Camera Control.....live action shooting

Standard video output with included adapterBNC to RCA you could connect yourDVR to any TV with an RCA video input no need for expensive monitors or screens.
