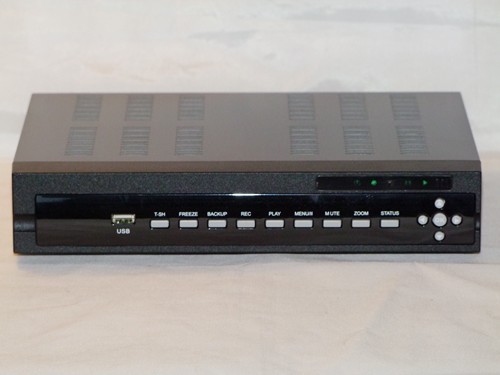

New RVH1004 Embedded Linux Real time 120FPS H.264 4 Channel Network Security DVR, Remote, Mouse, Network, VGA, 2TB, USB & Audio
|
RVH1004-2TB
|
|
With Remote Control, Mouse, PTZ Control Network & USB Backup with Audio and 2000GB Hard drive
|
List Price: $449.98
Your Price: $349.99
You Save: $99.99 (22 %)
Detailed Description
|

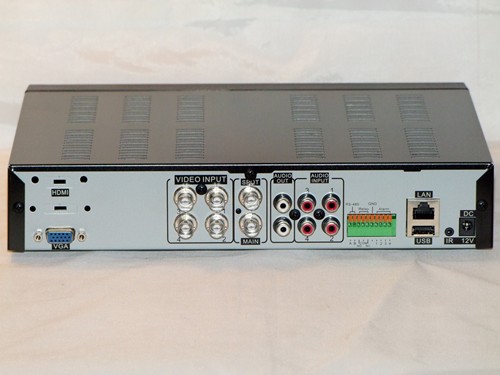

New Rayvision RVH1004 / ICATCH US411L with 2TB (2000GB) Hard Drive Installed: New RVH1004 120FPS Real Time 4 Channel an Industrial Grade DVR with Embedded Linux Operating System True hardware H.264 Compression DVR with Real Time Remote Surveillance. This is the most stable, the best user friendly and the most advanced H.264 DVR on the market. The RVH1004 provide 'always-on' recording capability, with variable resolution, image quality, image rate, and audio recording; all are adjustable per channel. This RVH1004 has several recording modes, including schedule, motion, alarm and panic button recording, each with individually adjustable settings per channel. The RVH1004 have strong networking for Remote Viewing and data archiving features for Backup, along with a handheld IR Remote Controller and an optional USB Thumb Drive. The RVH1004 boasts a large storage capacity, supporting up to two 2TB hard drive H.264 compression reduces HDD consumption, yet allows for excellent image reproduction, at any resolution. The powerful user friendly GUI ties it all together with a simple to use menu and strong admin features. Built-in zoom and playback filter for full control and clarity Recording. Through its built-in audio channels you can record and playback audio with video over the internet. Dual coder allow for dual stream for 100% independent Remote view and live operation with 30 FPS H.264 network server viewing . Backup options available through Network or USB 2.0 Port.

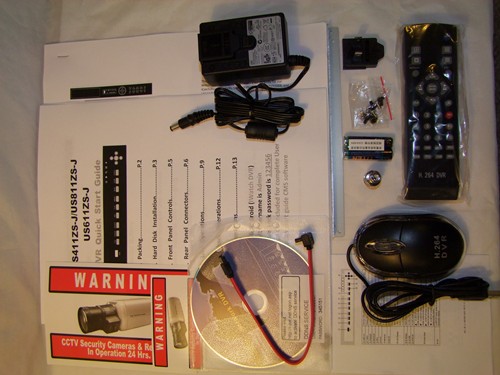

Box contains: Unit, 12VDC Power Supply, Power Cable, Remote, USB optical mouse, User Manual/Software CD, I/O Plug and RCA to BNC Adapter for use with TV input. A 2TB (2000GB) Hard Hard Drive is installed.
Hover Your mouse over the small images to enlarge
|

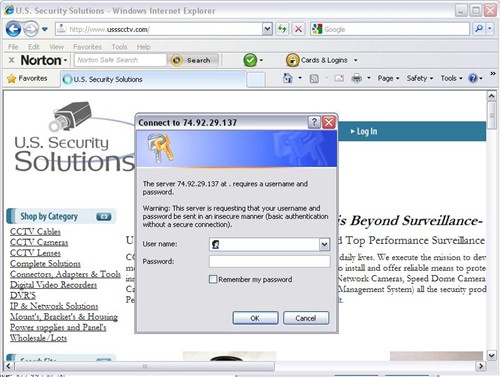

Click for Live Demo Of 16CH RVH1016
|
|
User Name: guest : Password :guest
|
|
|
|
|
|
Features ;
|
|
|
VGA and BNC for total of two output Support.
|
|
|
* Use VGA and BNC at the same time for two out
|
|
|
* Output resolution support up to 1920 x 1200.
|
|
|
Fully 100% Independent Remote Operation with 30FPS H.264 Network server built in.
|
|
|
* The operation between the local site and remote site use different codec and will not affect each other.
|
|
|
* The remote operation is 100 % independent Live view and playback.
|
|
|
True H.264 hardware Save HDD Capacity.
|
|
|
* H.264 Main Profile Compression Technology, which save more than 20% recording size than traditional H.264 Baseline Profile codec.
|
|
|
* Allows single-channel recording when a motion alarm is triggered.
|
|
|
*Allows Resolution & FPS Adjustment on Each Channel.
|
|
|
True Multiplex.
|
|
|
* Allows live display, record, playback, backup, network operation and network playback at the same time.
|
|
|
Free Upgrade to Advanced Functions.
|
|
|
* Allows you to upgrade DVR functions without any charges Via new firmware upgrade.
|
|
|
Backup Function.
|
|
|
* Supports USB flash drive and network backup
|
|
|
Remote Surveillance.
|
|
|

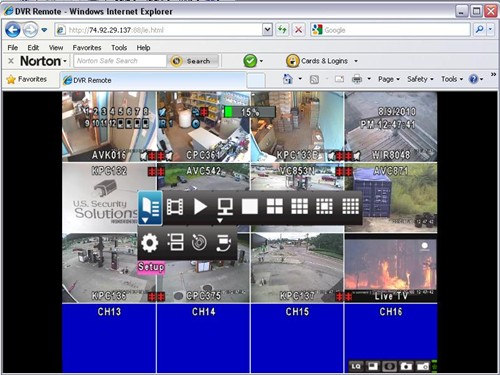

* Supports 100% remote independent surveillance up to 5 users simultaneously Via browser, or remote software.
|
|
|
* Remote software included Free for full Mac and PC support
|
|
|
* Center management allow for monitoring of unlimited number of DVRs all on one screen.
|
|
|
Full Smart phone support
|
|
|
* Intelligent 3G/GPRS Mobile Surveillance: Symbian, Windows Mobile, JAVA, IPhone, Blackberry, Android.
|
|
|
Intelligent Main Profile H.264 4G DVR.
|
|
|
* Embedded Linux Operating System
|
|
|
*Quality Taiwan’s made D1 DVR.
|
|
|
* Triple Stream, recording at D1 and viewing at CIF remotely
|
|
|
* Support CIF / Half D1 / D1 Recording Individually at the same time on.
|
|
|
* 4CH Real-Time display on 120FPS live, recording and playback
|
|
|
* Watermark & Scrambling examination to verify recorded files.
|
|
|
* GUI with 32 bit True Color
|
|
|
*Digital zoom from x 2 to x 8 on live and playback
|
|
|

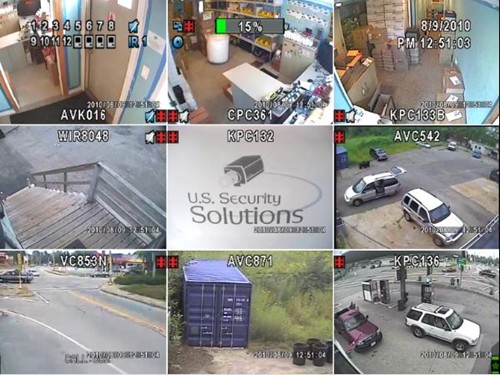

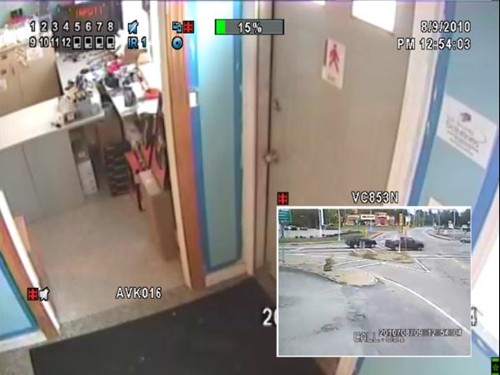

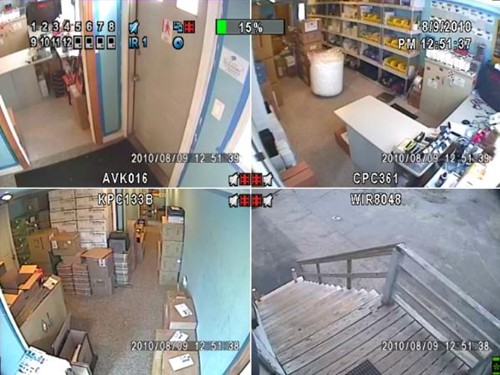

*View Live all 4 or individual channels, PIP, Auto SEQ, Motion Pop-up Full Screen.
|
|
|
*Playback all 4 or individual channels.
|
|
|
* Supports multi-language OSD.
|
|
|
* Supports SATA HDDs (1 SATA HDDs up to 2TB).
|
|
|
* Supports IR remote control and optical USB mouse
|
|
|
*2 USB allows operating DVR by mouse or touching panel screen.
|
|
|
* Supports remote control and live view via network.
|
|
|
* System auto recovery after power failure.
|
|
|
* Supports manual / timer / motion / alarm / remote recording.
|
|
|
* Supports 3G, TCP/IP, ADSL, DHCP and Full DDNS network connection.
|
|
|
Audio Support.
|
|
|
* Supports 1 audio-in, 1 audio-out to record sounds, with Audio over internet.
|
|
|
Cover Recording.
|
|
|
* Blank screen replaces live displays to achieve covert recording live and on remote view.
|
Standard video output with included adapter BNC to RCA you could connect your DVR to any TV with an RCA video input no need for expensive monitors or screens.
Unit comes with Full U.S.A One Years Warranty on DVR and 3 Years on the Hard Drive if Installed.
Hard drive warranty through the the hard drive manufacturer.
Specifications;
| OS
|
Embedded Linux
|
| Mode
|
Pentaplex (Live / Recording / Playback / Network)
|
| Video Compression
|
Hardware H.264
|
| Video System
|
NTSC / PAL
|
|
Video Inputs
|
Main Monitor x 1
VGA Output x 1 up to (1920 x 1200)
|
| Audio Input
|
RCA x 1
|
| Audio Output
|
RCA x 1
|
| Audio Backup
|
Yes
|
| Network Audio
|
Live and Playback
|
| Multilingual OSD
|
Yes
|
| Audio Compression
|
G.711
|
| Alarm Input & Output
|
Input x 4, Output x 1
|
| Display Resolution & Rate
|
120fps @ D1 (720 x 480)
|
| Mode
|
Digital zoom x 2 ~ x 8 / PIP / Auto SEQ / Motion Pop-up Full Screen
|
| Recording Compression
|
Hardware H.264
|
| Recording Resolution
|
D1 (720 x 480) / HD1 (720 x 240) / CIF (360 x 240)
|
| Recording Frame Rate
|
30fps @ D1 / 60fps @ HD1 / 120fps @ CIF
|
| Recording Quality
|
5 Levels (Highest / High / Normal / Low / Lowest)
|
| Recording Mode
|
Continuous / Motion / Alarm / Schedule
|
| Recording Setup
|
Resolution and FPS can be set up by each channel
|
| Live Display
|
1 / 4
|
| Playback Display
|
1 / 4
|
| Playback Resolution
|
D1 (720 x 480) / HD1 (720 x 240) / CIF (360 x 240)
|
| Playback Frame Rate
|
30fps@ D1 / 60fps@ HD1 / 120fps@ CIF
|
| Playback Speed
|
Normal / REW / FF (2x, 4x, 8x, 16x, 32x, 64x) / Pause SF (1/2x, 1/4x, 1/8x)
|
| Search Mode
|
Date / Time / Event / Motion / Camera
|
| Watermark
|
Yes, Support Watermark and Scrambling Function
|
| Internal HDD
|
SATA / SATAII HDD x 1 (2TB max)
|
| Backup Mode
|
USB / Network
|
| GUI
|
32 bit True Color Mouse-Control GUI
|
| Multi-language
|
16 Languages
|
| IR Remote Control
|
Yes
|
| Touch Panel
|
Supports USB Touch Panel
|

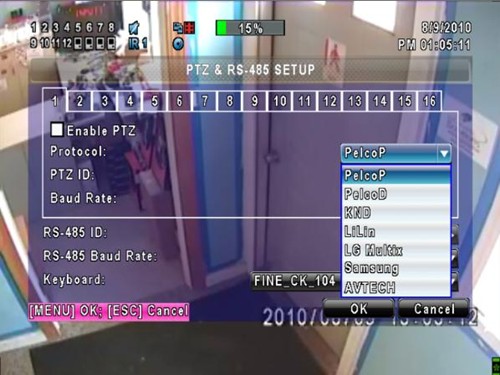

| PTZ
|

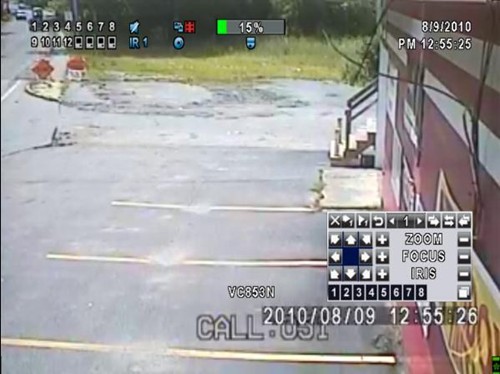

YES, Supports Pelco P / Pelco D / Samsung / LG / LiLin Protocol
|
| Ethernet
|
Yes, RJ45, 10/100 Mbps
|
| Service
|
TCP/IP, HTTP, DHCP, PPPOE (ADSL), LAN, DDNS, E-Mail
|
| Independent Network
|
YES (100% independent)
|
| Mobile Surveillance
|
YES (3G/GPRS) – Symbian, Windows Mobile, JAVA, iPhone, Blackberry, Android
|
| Access Mode
|
IE / AP (MAC and PC) / CMS (free of charge)
|
| Motion Detection
|

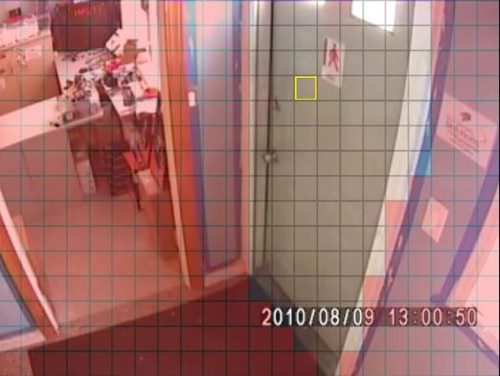

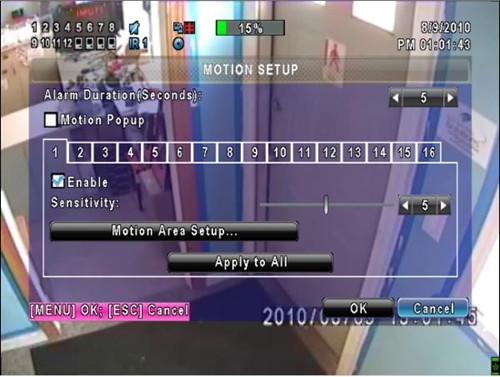

YES (16 x 12 Grids per channel)
|
| Pre-alarm / Post-alarm
|
Pre-alarm 10 sec / Post-alarm 1-60 sec
|
| Power Input
|
DC 12V, AC 110/220V
|
| Dimension
|
293 x 205 x 55 (mm)
|
| Net Weight
|
4LB
|

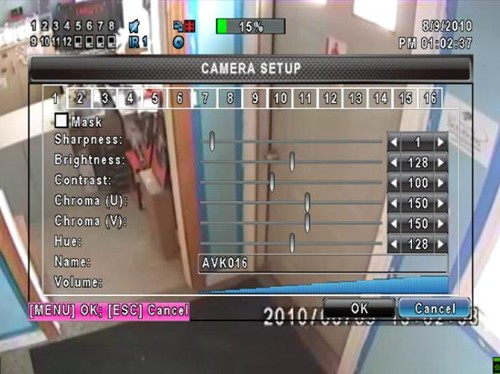

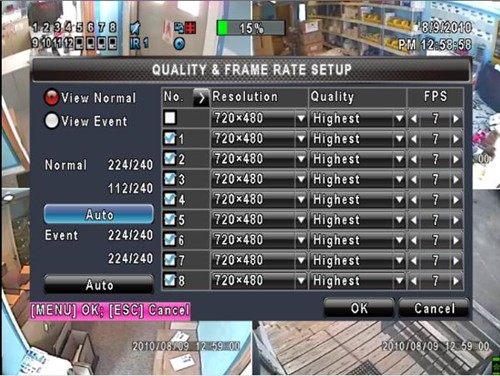

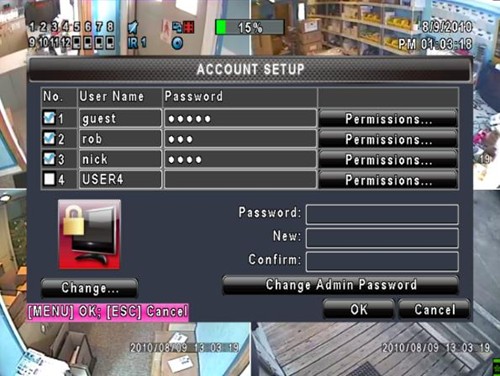

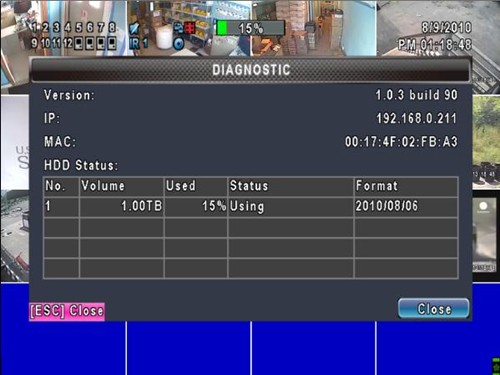

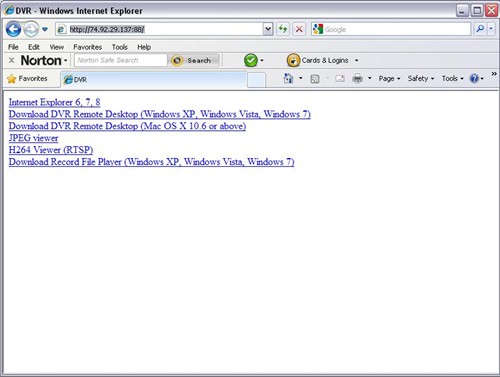

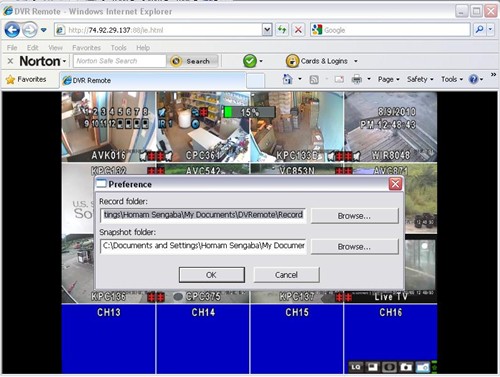

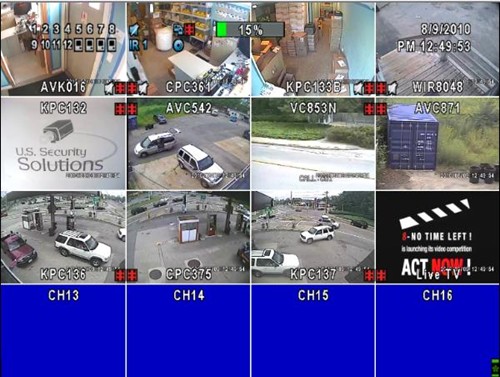

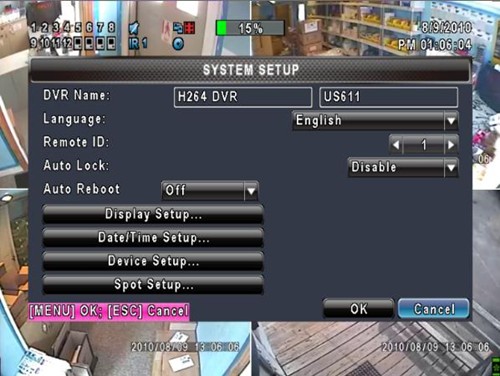

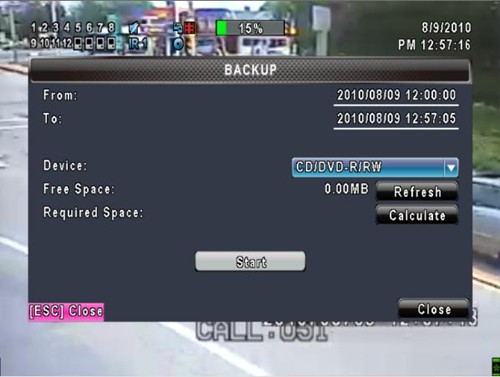

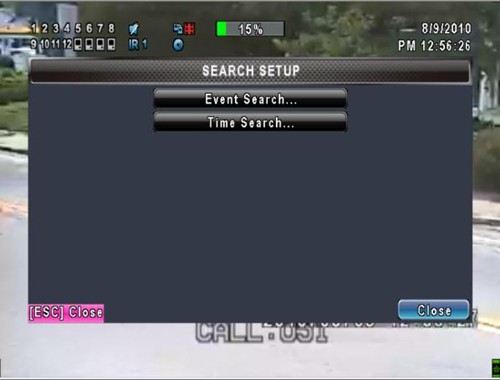

Screen shots;
