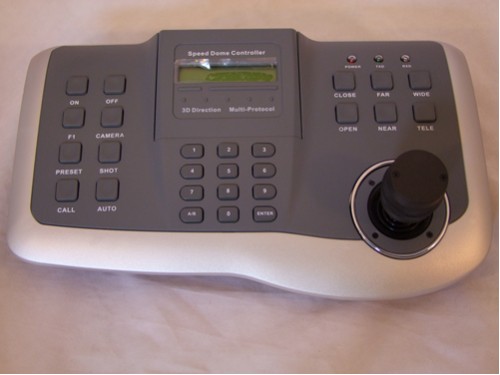

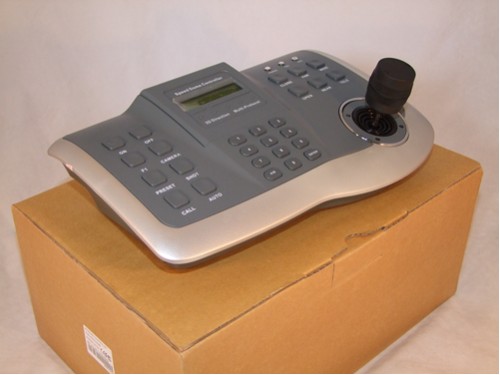

New VC-8X02 P.T.Z. Keyboard Controller:  Speed Dome Control Keyboard is a full-function, desktop keyboard controller that can be used in a variety of applications. A barrel-type joystick provides precise pan and tilt control of fixed speed and variable speed receivers. Twisting the joystick clockwise or counter clockwise zooms the lens in or out.

Hover Your mouse over the small images to enlarge images to enlarge

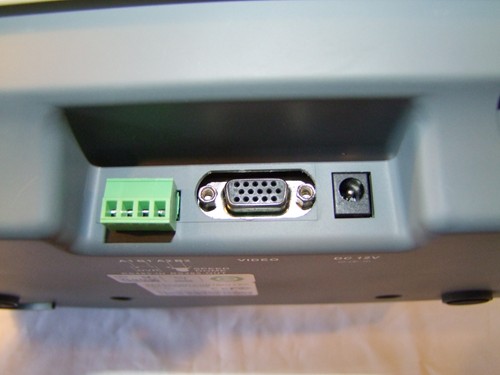

Controls up to 32 devices through one keyboard controller User-friendly button placement Control object: high speed ball, general ball  PTZ decode Supports Multi-protocols Screen display: 16x2 character Easy Operation   Device Control P.T.Z. Remote Control RS-485 In / Out Protocol PELCO_D, PELCO_P,  ALEC, SAMSUNG, VIDO-B01, NEON,  HTSCAM, HD600, TOTA,  KALATEL, VCLDOME,  REDAPPLE, SANTACHI450, SANTACHI650, VICON . Baud Rate 1200bps,2400bps,4800bps,9600bps,19200bps LCD Display 16 X 2 Character Ethernet Port No Power Supply Included Yes Input Voltage DC12V Power Consumption 1AMP  Operating Temperature -10°C ~ 50°C Operating Humidity < 95% Dimension (mm) 380 (W) x 180 (H) x 95 (D)   We offer UPS shipping ground, three days select and Over night No P.O. Box Please
